What makes industrial lenses so important? These specialized lenses play a critical role in various high-tech industries.

From machine vision to medical imaging, they ensure precision and clarity.

In this post, you’ll learn about the three main types of industrial lenses. We’ll explain their applications and help you understand how to choose the right lens for your needs.

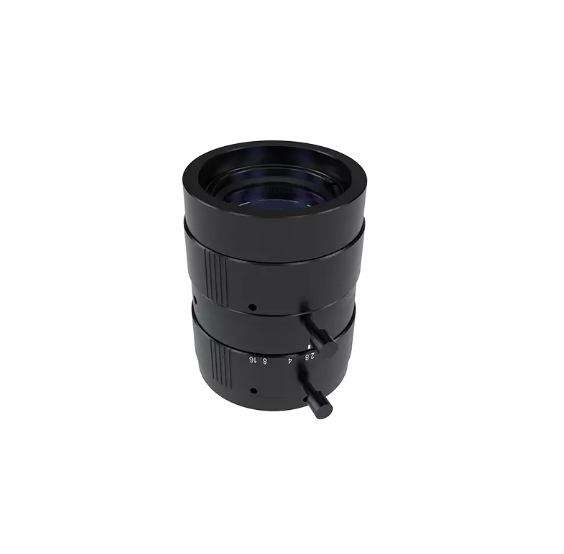

C-Mount Lenses | Fixed Focal Length FA Lenses Fixed Focal Length FA Lenses Industrial Camera C-Mount Lens

Why Industrial Lenses Matter in Modern Technology

Industrial lenses are designed for specific tasks, making them different from regular camera lenses. While regular lenses capture general images, industrial lenses focus on precision and clarity. These lenses are engineered to meet the demanding needs of industries like manufacturing, healthcare, and security.


How Do Industrial Lenses Differ from Regular Camera Lenses?

● Design: Industrial lenses are built with high-quality materials to endure harsh environments, while regular lenses are meant for everyday use.

● Precision: Industrial lenses focus on accuracy, ensuring minimal distortion. Regular lenses, on the other hand, are more focused on general image quality.

● Applications: Industrial lenses are specialized for specific tasks such as machine vision, medical diagnostics, and security monitoring. Regular lenses are more versatile but less specialized.


What Makes Industrial Lenses Crucial for Specific Industries?

High precision and low distortion are key to many industries. In machine vision, industrial lenses ensure accurate inspection of products on production lines. For automation, they support tasks like object detection and part sorting, where clarity is crucial. Medical diagnostics rely on industrial lenses for clear imaging, especially in tools like endoscopes and microscopes.

Impact of Precision and Low Distortion

● Machine Vision: Helps in detailed product inspections, ensuring defect-free manufacturing.

● Automation: Necessary for accurate object identification and handling in robotics.

● Medical Diagnostics: Provides precise images for better patient care and treatment decisions.

These lenses are the backbone of many high-tech systems, enabling industries to achieve unmatched performance and accuracy.


The Three Core Types of Industrial Lenses

When it comes to industrial lenses, there are three main types: fixed focal length lenses, zoom lenses, and telecentric lenses. Each of these serves a different purpose in various industries, depending on the requirements of the task at hand.


Fixed Focal Length Lenses

These lenses have a fixed focal length, meaning they can’t zoom in or out. They are often used in applications where precision and clarity are critical. Fixed focal length lenses provide sharp, high-quality images with minimal distortion.

● Ideal for: Surface inspections, barcode scanning, and quality control.

● Advantages: High image quality, stable performance, and cost-effectiveness.

● Disadvantages: Limited flexibility in terms of field of view.


Zoom Lenses

Zoom lenses allow for a variable focal length, giving you the ability to adjust the field of view. This makes them suitable for dynamic environments where the size or distance of objects changes. These lenses are perfect for applications that require flexibility.

● Ideal for: Visual inspection of varying object sizes and distances.

● Advantages: Flexible and versatile, reducing the need for lens swaps.

● Disadvantages: May have more distortion and lower image quality at higher zoom levels.


Telecentric Lenses

Telecentric lenses are designed to maintain the same magnification across different distances and angles. This feature makes them ideal for precision measurements, especially when consistency is crucial. These lenses are widely used in applications that require high accuracy.

● Ideal for: Dimensional measurement, like in semiconductor inspection and precision manufacturing.

● Advantages: High accuracy, minimal distortion, and consistent results.

● Disadvantages: Higher cost and a smaller field of view compared to other lenses.


Why is it Important to Choose the Right Type of Lens for Industrial Applications?

The choice of lens affects more than just image quality. It impacts the performance and efficiency of an industrial system. For example, using the wrong lens can lead to image distortion, poor precision, or wasted time in production. A well-chosen lens ensures that inspections are accurate, operations run smoothly, and systems perform at their best.

● Performance: The right lens ensures optimal functionality, especially in automated systems.

● Image Quality: High-quality lenses are essential for accurate image capture and measurement.

● Operational Efficiency: Using the correct lens reduces errors, increases productivity, and minimizes downtime.

Choosing the right lens is essential to getting the best results in industrial environments.


Fixed Focal Length Industrial Lenses

A fixed focal length industrial lens has a set focal length, meaning it doesn't zoom in or out. These lenses focus on providing high-quality images with minimal distortion, making them ideal for precision tasks. They work by maintaining a constant focus, ensuring clear images without the need to adjust the lens.

How Do Fixed Focal Length Lenses Work?

● Fixed Focus: These lenses do not have an adjustable focal length, so they capture a specific area or object clearly.

● Image Quality: Due to their simple design, fixed focal length lenses offer high resolution and sharp images.

● Low Distortion: They typically have less image distortion compared to zoom lenses, which is important in industrial applications where precision matters.

Common Uses of Fixed Focal Length Industrial Lenses

Fixed focal length lenses are widely used in tasks that require accurate measurements and high image quality.

● Quality Control: Essential for inspecting parts on production lines, ensuring they meet high standards.

● Barcode Scanning: Ideal for capturing clear, detailed images of barcodes for reading and analysis.

● Surface Defect Detection: Useful for inspecting surfaces for defects like scratches or dents, where clarity is essential.

Advantages of Fixed Focal Length Lenses

● Higher Image Quality: These lenses are designed for precise imaging, ensuring sharp, detailed pictures.

● Stable Performance: Since there’s no zoom, they provide consistent image quality during operations.

● Low Cost: Fixed focal length lenses are generally more affordable compared to other types, making them cost-effective for many industries.

Disadvantages of Fixed Focal Length Lenses

● Lack of Flexibility: With no zoom function, the field of view is fixed, limiting flexibility in dynamic environments.

● Multiple Lenses Needed: For different tasks or inspection areas, multiple fixed focal length lenses might be required to cover various focal lengths or distances.


Zoom Industrial Lenses

Zoom industrial lenses allow continuous adjustment of the focal length. Unlike fixed focal length lenses, these lenses can change the field of view, offering more flexibility during industrial tasks. This makes them ideal for dynamic environments where the size or distance of objects can change.

How Do Zoom Lenses Work?

Zoom lenses function by varying the focal length, enabling you to adjust the lens’s focus without physically changing the lens. This flexibility allows operators to switch between different magnifications smoothly and efficiently.

When and Why Are Zoom Lenses Used in Industrial Settings?

● Dynamic Inspections: In environments where the size or shape of objects varies, zoom lenses help adjust the field of view as needed.

● Production Line Adjustments: When inspecting different parts on an assembly line, zoom lenses allow easy switching between various focal lengths.

● Flexible Measurement: They are also used in applications where you need to measure objects at varying distances, offering adaptability for different inspection scenarios.

Advantages of Zoom Lenses

● Versatility: They are highly flexible, allowing operators to quickly adjust magnification for different tasks.

● Reduces Lens Swapping: Since zoom lenses can cover a wide range of focal lengths, you don't need to change lenses as frequently.

● Increased Flexibility: Operators can easily change the field of view, making zoom lenses perfect for fast-paced industrial environments.

Disadvantages of Zoom Lenses

● Potential Decrease in Image Sharpness: At higher focal lengths, image quality might suffer, leading to softer images.

● Distortion: Zoom lenses can experience distortion, especially at the extreme ends of their focal range, affecting the clarity of the image.


Telecentric Industrial Lenses

Telecentric lenses are designed to maintain the same magnification across different distances and angles. Unlike regular lenses, which may experience changes in magnification as the distance between the lens and object changes, telecentric lenses provide consistent scaling for precise measurements.

How Do Telecentric Lenses Differ from Other Lenses?

The key difference lies in how they handle magnification. Regular lenses often experience a change in magnification when the distance to the object shifts. Telecentric lenses, however, keep the magnification constant, providing accurate and reliable measurements.

Why Are Telecentric Lenses Critical for Precision Measurement?

Telecentric lenses are vital when accuracy is paramount. They are widely used in industries where even the smallest measurement variations can affect product quality or functionality. These lenses help maintain precise dimensions and measurements across different object depths or angles.

Common Applications of Telecentric Lenses:

● Semiconductor Inspection: Telecentric lenses are essential in semiconductor manufacturing, where minute measurements are critical for quality control.

● Automotive Part Measurement: Used for measuring complex automotive parts, ensuring that each part meets strict specifications for fit and function.

Advantages of Telecentric Lenses

● Superior Accuracy: These lenses provide highly accurate and consistent measurements.

● Low Distortion: The design minimizes distortion, which is important for precise inspections and measurements.

● Consistency in Measurement: Telecentric lenses ensure that measurements remain stable, even when the object’s position or angle changes.

Disadvantages of Telecentric Lenses

● Higher Cost: Telecentric lenses are generally more expensive than other types due to their specialized design.

● Limited Field of View: These lenses often have a smaller field of view compared to other lens types, limiting their use in wide-area scanning applications.

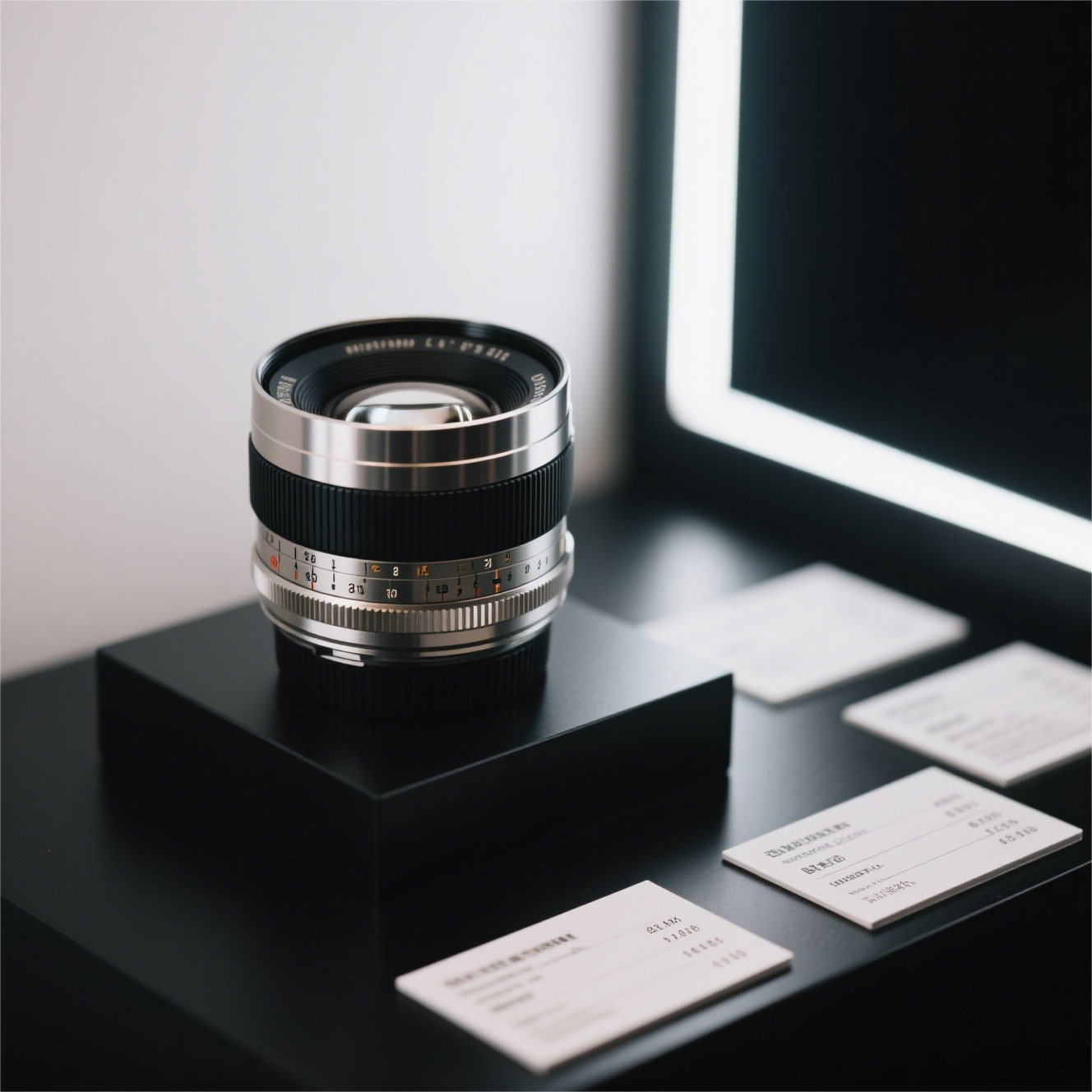

Camera lens on display stand

How to Choose the Right Industrial Lens for Your Needs

Choosing the right industrial lens is critical for ensuring the best performance of your vision system. The lens you select will directly affect the quality of your images and measurements, so it’s important to understand what factors to consider.


What Are the Key Factors to Consider When Selecting an Industrial Lens?

Several key factors determine which lens is best for your needs:

● Resolution: Higher resolution lenses are required when you need sharp, clear images for detailed inspections.

● Focal Length: The focal length impacts how far or close the lens can focus. A longer focal length works better for distant objects, while a shorter one is suitable for close-up work.

● Field of View: The field of view determines how much area the lens can capture. A wider field of view is necessary for inspecting larger objects.

● Distortion Rates: Low distortion is essential for accurate measurements and quality control, especially in precision applications.

● Lens Compatibility: Ensure the lens is compatible with your camera system, including factors like interface type (C, CS, or F mount) and sensor size.


How Does the Application Determine Lens Choice?

Your specific application plays a big role in lens selection. The lens must match the demands of the task to deliver the best results.

● Barcode Scanning: For clear and fast scanning, a lens with low distortion and high resolution is ideal.

● Machine Vision: Precision tasks like part inspection require lenses with minimal distortion and the right focal length for the specific size of the objects being inspected.

● Security Monitoring: Wide-angle lenses may be needed to cover larger areas, while high-definition lenses ensure sharp image quality.

● Medical Imaging: Lenses used in medical devices require high resolution and low distortion to capture detailed, accurate images for diagnostics.


How Does Environmental Condition Affect Lens Selection?

Environmental factors can significantly influence lens performance. It’s important to consider the conditions in which the lens will be used.

● Temperature: Some lenses are designed to handle extreme temperatures. If you are working in high-heat or cold environments, look for lenses with a wide operating temperature range.

● Humidity: Lenses used in humid environments may need special coatings or sealing to prevent fogging or internal condensation.

● Dust Resistance: In dusty environments, it's important to choose lenses with a sealed design or those that are dust-resistant to avoid lens damage and image distortion.

These factors all play a part in choosing the right lens for your industrial applications. Understanding your needs and environmental conditions will help you make an informed decision.


Common Applications of Industrial Lenses

Industrial lenses play a vital role in several high-tech industries, ensuring precision and reliability in a range of applications. Let’s explore how these lenses are used across different sectors.

Machine Vision

Industrial lenses are crucial in machine vision systems, where they are used for tasks like product quality inspection, barcode reading, and automated assembly.

● Product Quality Inspection: Lenses help capture sharp images to detect defects on production lines, ensuring only flawless products are shipped.

● Barcode Reading: Lenses are essential for clearly capturing barcodes, allowing systems to read and process them efficiently.

● Automated Assembly: In automated systems, lenses assist in guiding robots to assemble parts accurately and efficiently.

Medical Imaging

In the medical field, industrial lenses are used in devices such as endoscopes and microscopes. These lenses are designed for high-resolution imaging, providing doctors with clear, detailed views of internal structures.

● Endoscopes: Lenses in endoscopes help provide detailed images of body cavities, aiding in diagnostic procedures.

● Microscopes: Lenses used in microscopes offer magnification and clarity, essential for examining tissue samples or small biological specimens.

Security and Surveillance

Lenses play a significant role in the security and surveillance sector, ensuring that CCTV cameras and automated systems deliver high-quality images for monitoring purposes.

● CCTV Cameras: High-resolution lenses provide clear footage, which is vital for security monitoring in public spaces and private properties.

● Automated Security Systems: Lenses are integrated into automated systems to help detect motion and monitor areas effectively.

● Traffic Monitoring: Lenses capture vehicle details and license plates, supporting traffic control and law enforcement efforts.

Manufacturing and Automation

Industrial lenses are critical in manufacturing and automation systems, where they support various processes such as assembly, robot vision, and material handling.

● Assembly Lines: Lenses are used to ensure accurate part placement, checking for defects in real-time.

● Robot Vision: Lenses assist robots in detecting objects, positioning them correctly, and performing tasks autonomously.

● Material Handling: Lenses help guide automated systems in moving materials through production processes, ensuring accuracy and efficiency.

These applications highlight the essential role of industrial lenses in modern technologies, where precision, clarity, and efficiency are critical.


Industrial Lens Trends and Innovations

The industrial lens market is rapidly evolving, driven by technological advancements and new demands. Let's explore the latest trends and innovations shaping this field.


What Are the Latest Trends in Industrial Lenses?

Several exciting developments are shaping the future of industrial lenses. Key trends include:

● Hybrid Lenses (Glass-Plastic): Combining glass and plastic materials, hybrid lenses offer a balance between high-quality performance and cost-effectiveness.

● Liquid Lenses: These lenses use electrically controlled fluid to change focus, offering ultra-fast adjustments and versatile applications.

● High-Speed Imaging Technologies: Lenses are now designed to handle high-speed imaging, crucial for industries like automotive testing and high-speed manufacturing.


How Are Technological Advancements Changing Industrial Lens Designs?

As technology advances, so does the design of industrial lenses. The main driving forces include:

● Higher Resolution: There's a growing demand for lenses that capture sharper, more detailed images, especially for applications like quality control and medical imaging.

● Smaller Form Factors: Miniaturization is becoming key as industries require compact lenses for use in tight spaces or smaller devices.

● Better Durability: Lenses are being designed to withstand harsh environments, including extreme temperatures and high vibrations, ensuring longevity and reliability.


What New Features Are Being Incorporated into Industrial Lenses?

Recent innovations are pushing the boundaries of what industrial lenses can do. Key new features include:

● Integration of AI and Machine Learning: Some lenses now come equipped with AI-powered features, enabling automated image analysis and decision-making.

● Smart Lenses with Built-In Sensors: These lenses can process data and interact with other devices, making them more intelligent and responsive.

● Advanced Coatings: New coatings improve lens durability, reduce glare, and enhance optical clarity, even in challenging lighting conditions.

These innovations are not just making industrial lenses more efficient but are also opening up new possibilities for industries worldwide.


The Future of Industrial Lenses

As technology continues to advance, so does the role of industrial lenses. Let's explore the potential advancements and how these lenses will shape the future of automation and AI.

What Are the Potential Advancements in Industrial Lens Technology?

The future of industrial lenses is bright, with several key innovations on the horizon:

● Artificial Intelligence Integration: Lenses with built-in AI can automatically analyze images and make real-time decisions, enhancing automation and efficiency.

● Machine Learning: Lenses could use machine learning algorithms to improve image processing, making them more adaptable and efficient in complex environments.

● Enhanced Optical Coatings: Future lenses may feature advanced coatings that reduce glare, enhance durability, and improve image quality under various lighting conditions.

These advancements will make lenses more intelligent and adaptable to the evolving needs of industries.

What Role Will Industrial Lenses Play in the Future of Automation and AI?

Industrial lenses will play a crucial role in the future of automation, particularly in industries like robotics, autonomous vehicles, and smart factories. High-precision lenses are essential for these technologies:

● Autonomous Vehicles: Lenses will be crucial for providing clear, accurate vision for self-driving cars, helping them navigate and make decisions in real time.

● Robotics: In manufacturing and other sectors, robots will rely on lenses to "see" and interact with their environment, enabling precise tasks like assembly and inspection.

● Smart Factories: Lenses will be integrated into automated production lines, providing high-precision imaging that ensures efficiency and quality control.

As automation and AI continue to grow, industrial lenses will be at the heart of these technologies, enabling faster, more reliable operations.

Telecentric Lenses 2/3

Choosing the Best Lens for Specific Applications

Selecting the right industrial lens is crucial for achieving accurate results in various applications. Let’s discuss which lenses are ideal for specific tasks like surface defect detection and 3D object measurement.


What Lens Should You Choose for Surface Defect Detection in a Production Line?

When detecting surface defects on a production line, image clarity and precision are key. A fixed focal length lens is often the best choice for this application.

● Why Fixed Focal Length Lenses?These lenses provide sharp, clear images with minimal distortion, making them ideal for inspecting the surface of objects like metal parts, plastics, and electronics.

○ Fixed focal length lenses are reliable and cost-effective, which is essential for high-volume production lines.

The lens should also have a low distortion rate and high resolution to detect even the smallest imperfections in the surface.


Which Industrial Lens Works Best for 3D Object Measurement in Semiconductor Manufacturing?

In semiconductor manufacturing, telecentric lenses are the best choice for 3D object measurement. These lenses maintain consistent magnification across different depths and angles, which is crucial for accurate dimensional measurements.

● Why Telecentric Lenses?Telecentric lenses eliminate perspective distortion, providing precise and consistent measurements, especially when measuring objects with varying heights or complex shapes.

○ They are ideal for inspecting small, intricate components like semiconductor wafers or microchips, where accuracy is paramount.

The high precision and low distortion of telecentric lenses make them essential in industries where measurements down to microns are necessary.

These lenses help ensure that all measurements remain true and consistent, even when the object being measured is tilted or moved.


Conclusion: Making the Right Choice for Your Industrial Lens Needs

Choosing the right industrial lens depends on your specific needs.

● Fixed Focal Length Lenses: Best for high-precision tasks and stable performance.

● Zoom Lenses: Ideal for flexible, dynamic environments.

● Telecentric Lenses: Crucial for high-precision dimensional measurements.

To select the best lens, understand your application, environment, and performance requirements.

For quality industrial lenses, consider trusted suppliers and manufacturers who provide lenses suited to your needs.


FAQ

Q: What is the best industrial lens for machine vision?

A: The best lens for machine vision depends on the application. Fixed focal length lenses are ideal for high-precision tasks, while zoom lenses offer flexibility for dynamic inspections.

Q: How do telecentric lenses help with dimensional measurement?

A: Telecentric lenses provide consistent magnification across different distances, eliminating perspective distortion and ensuring accurate, high-precision measurements.

Q: Are zoom lenses suitable for high-precision applications?

A: Zoom lenses are less precise than fixed focal length lenses and may introduce distortion, making them less ideal for high-precision applications.

Q: What factors should be considered for lens compatibility with cameras?

A: Consider factors like lens mount type (C, CS, or F), sensor size, resolution, and working distance for proper lens-camera compatibility.

Rising-EO is a a large-scale manufacturer integrating the production and sales of precision optical components, optical lenses and optical systems.

Quick Links

Product Category

Application

Contact Us

 Tel: +86-591-83349016
 Phone: +86-18950282034
 Email: Sales@rising-eo.com
 Add: Unit 101, Building 10A, Fuzhou Hi-Tech Industrial Park, Poly communications, No.20 zhihui Avenue, NanYu Town, MinHou County, Fujian

Follow Us

Follow WeChat public number with interest
Copyright © 2024 Fujian Rising EO Technologies Co., Ltd. All Rights Reserved. Sitemap. Privacy Policy  闽ICP备2022015239号
