Precision optical systems demand absolute control over light. When you fail to manage spectral profiles or intensity, the results are immediate and damaging. Poor signal-to-noise ratios ruin data integrity. Sensors easily saturate under excess illumination. In critical environments, unmanaged light paths completely undermine system performance.
Engineers and system integrators face a constant challenge. You must select the correct filter topology based on strict physical and environmental constraints. You need to decide whether a system should transmit, reject, or attenuate specific light profiles. Making the wrong choice leads to compromised sensor readings and potential hardware damage. Selecting the right component dictates overall system reliability.

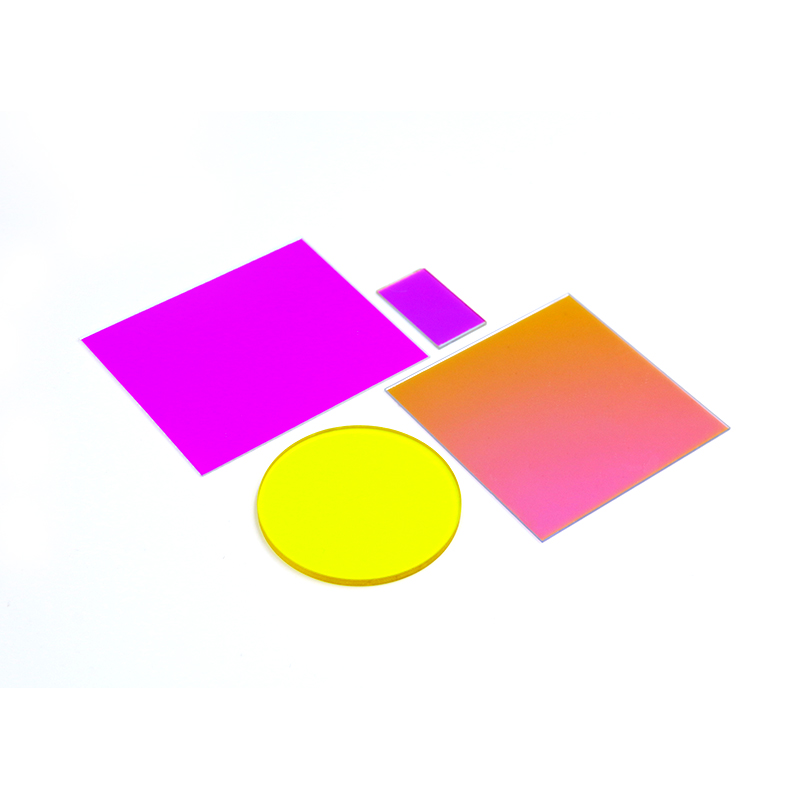

This article clarifies the functional boundaries between bandpass, notch, and Neutral Density (ND) filters. We will establish a technical decision framework to help you evaluate core performance metrics. You will learn how to mitigate implementation risks when specifying Optical Filters for precision applications.
All three components fundamentally modify light paths. However, they serve entirely different optical objectives. Engineers must distinguish between isolation, rejection, and attenuation to properly design a light path.
A Bandpass Optical Filter creates a specific "window" of transmission. It allows a targeted band of light to pass through while heavily blocking adjacent wavelengths. Manufacturers define this window using a Center Wavelength (CWL) and a specific bandwidth. To achieve this isolation, these components utilize complex dielectric thin-film coatings or absorptive colored glass. The dielectric layers create constructive interference for the desired wavelengths and destructive interference for everything else.
The notch profile acts as a band-stop mechanism. It operates via a "deep block" approach. This design provides a targeted shield against high-intensity, single-wavelength sources. Lasers represent the most common target for notch designs. The primary objective is to block the overpowering laser line while allowing maximum throughput for the surrounding broadband spectrum. This enables clear visibility of faint secondary emissions.
The ND profile provides broad-spectrum attenuation. It manages total light volume rather than selecting specific colors. ND filters fall into two distinct physical categories:
Choosing between isolation and rejection depends heavily on your dominant noise source. Signal-to-noise optimization drives the decision-making process.
You should choose a bandpass design when your desired signal is narrow and the background noise is broadband. Fluorescence microscopy is a prime example. The fluorophore emits light in a very specific, narrow band. Meanwhile, ambient light and excitation source bleed-through create broadband background noise. The bandpass window ensures only the fluorescence reaches the detector.
Conversely, you should choose a notch design when your desired signal is broadband but a single, overpowering source of noise exists. Raman spectroscopy perfectly illustrates this scenario. The Raman scattering effect produces a faint, broad spectrum of shifted light. However, the primary excitation laser creates massive glare. A notch design selectively eliminates the laser line without sacrificing the faint Raman signal.
Both filter types face strict structural realities. Achieving very steep edges—the sharp transition from high transmission to deep blocking—is physically demanding. Manufacturers must apply complex, multi-layer thin-film coatings to the glass substrate. Sometimes these coatings exceed one hundred individual layers. This complexity increases manufacturing costs. It also makes the final component highly sensitive to environmental factors and physical handling.
ND components focus entirely on intensity control without chromatic shift. You evaluate them not by which specific wavelengths they block, but by how much total light they remove from the system. Their purpose is uniform dimming.
Machine vision systems frequently rely on broad-spectrum attenuation. Industrial cameras often operate in highly variable lighting conditions, such as outdoor daylight or intense factory strobes. When adjusting the aperture or exposure time proves insufficient, ND glass prevents sensor saturation. High-power laser systems also utilize heavy attenuation for safe sensor calibration. In life sciences, attenuating the excitation light prevents rapid photobleaching of delicate live-cell samples.
Engineers must carefully navigate the "neutrality" assumption. Real-world physics dictates a skeptical approach: no filter is perfectly flat across all wavelengths. A component labeled "neutral" in the visible spectrum might become highly transparent or completely opaque in the near-infrared (NIR) or ultraviolet (UV) regions. Always verify the actual transmission curve for your specific operating spectrum before integration.
| Spectrum Region | Ideal Transmission Target | Common Practical Variance |
|---|---|---|
| Ultraviolet (UV) | Uniform % based on OD | Often drops to near-zero (glass absorption) |
| Visible (VIS) | Uniform % based on OD | Highly neutral, ±2% deviation |
| Near-Infrared (NIR) | Uniform % based on OD | Significant spikes in transmission |
Specifying components requires a rigid mathematical framework. You cannot rely on qualitative descriptions when precision is mandatory. Three core metrics dictate success.
First, evaluate Optical Density (OD). We define OD mathematically as OD = -log10(T), where T is transmission. This logarithmic scale heavily impacts system design. An OD4 specification means the filter allows only 0.01% of unwanted light to transmit. An OD6 specification drops transmission to 0.0001%. While OD6 offers incredible blocking power, it drastically alters both system performance and component price. Over-specifying OD limits manufacturing yield and drives up budgets unnecessarily.
Next, map the Center Wavelength (CWL) and the Full Width at Half Maximum (FWHM). These represent the critical tolerances for isolation tasks. CWL defines the exact peak of the transmission window. FWHM defines the width of that window at 50% of peak transmission. A narrow FWHM ensures higher spectral precision. However, a narrow band inherently captures fewer photons, resulting in lower total energy throughput at the sensor. You must balance precision against required light volume.
Finally, analyze transmission efficiency. Deep blocking is important, but peak transmission matters equally. A component that perfectly blocks all out-of-band noise becomes useless if it only transmits 40% of your target signal. You must evaluate the trade-off between blocking depth and peak transmission. Modern ion-beam sputtering techniques can achieve OD6 blocking alongside 90% peak transmission, but these capabilities command premium pricing.
Even perfectly specified components fail during system integration if you ignore environmental physics. Precision light manipulation introduces unique mechanical and thermal vulnerabilities.
Angle of Incidence (AOI) shifts represent the most common engineering pitfall. Interference coatings are highly sensitive to the angle of incoming light. Manufacturers typically specify performance for a 0-degree angle (normal incidence). If you tilt the glass relative to the light path, the physical path length through the dielectric layers changes. This shifting causes the center wavelength to move toward the blue end of the spectrum, an effect known as blueshift. If your system uses diverging or converging light beams rather than collimated light, the varying angles will broaden your FWHM and degrade edge steepness.
Thermal drift and environmental degradation pose significant risks in harsh environments. Fluctuating temperatures alter the refractive index of thin-film coating layers. This physical expansion and contraction causes spectral drift, moving your transmission window away from your target signal. Traditional soft-coated alternatives absorb moisture, further altering performance over time. We highly recommend utilizing hard-coated, densely packed dielectric layers for aerospace, industrial, or outdoor integrations.
Laser Damage Threshold (LDT) requires strict attention. Never integrate absorptive ND media into high-power laser paths. The glass absorbs the laser energy, converts it to immense heat, and rapidly suffers catastrophic thermal fracturing. High-energy applications strictly require reflective optics or specialized high-LDT components designed to dissipate thermal loads safely.
Moving from theory to procurement requires a disciplined, step-by-step approach. Follow this sequence to narrow down vendor catalogs and specify custom runs effectively.
Bandpass components isolate specific signals. Notch designs reject overpowering single-wavelength noise. ND components uniformly attenuate total intensity across broad spectrums. Understanding these functional boundaries allows engineers to manage optical noise and protect sensitive detectors accurately.
Before finalizing your optical selection, you must look beyond top-line marketing specifications. Always advise your procurement team to request complete transmission curve data from the manufacturer. You need visible proof of out-of-band blocking ranges, exact AOI shift equations, and specific UV/IR performance anomalies. Relying strictly on raw data curves ensures your integrated system performs exactly as designed in the field.
A: Yes, but each added filter introduces significant risks. Every new glass surface creates additional surface reflections and potential ghosting effects. Stacking multiple elements also compounds transmission losses, severely reducing your overall system throughput and signal-to-noise ratio.
A: Longpass and shortpass filters act as a single step or edge. They transmit everything above or below a specific wavelength point while blocking the rest. A bandpass filter effectively acts as a combination of both types, creating a perfectly closed window with defined upper and lower boundaries.
A: Interference filters rely on reflection rather than absorption to block out-of-band wavelengths. They feature alternating dielectric thin-film layers that bounce unwanted light away from the sensor. This constructive reflection results in a distinctly mirror-like appearance when you observe the rejected light at an angle.
