Selecting the ideal magnification range for an ophthalmic operating microscope is not a straightforward numbers game. It is a precise exercise in optical compromise. Surgeons constantly balance maximum zoom capabilities against visual clarity. While the industry standard typically spans 4x to 40x, pushing magnification to the limit inherently shrinks the field of view. It also drastically reduces the depth of field.
This optical trade-off forces procurement teams to look far beyond simple zoom specifications. You must evaluate how the optical system integrates seamlessly into the surgical workflow. We will explore how smart illumination management prevents severe phototoxicity risks. You will also learn why maintaining parfocality is vital for complex procedures. Ultimately, we provide actionable guidance to help you configure your Ophthalmic Operating Microscope for specific subspecialties, ensuring optimal safety and surgical precision.
Standard Range: The functional magnification range for ophthalmic surgery is generally 4x to 40x, driven by a combination of the objective lens, binocular tube, and eyepieces.
The Optical Trade-Off: Higher magnification exponentially decreases depth of field; premium systems mitigate this through apochromatic lenses and proprietary visual-fusion technologies.
Subspecialty Driven: Anterior segment procedures (cataracts) prioritize red-reflex stability at moderate magnification, while posterior segment procedures (vitreoretinal) demand higher peak magnification and integrated OCT.
Safety Interdependency: Increased magnification requires higher illumination, necessitating automated light-management systems to prevent macular phototoxicity.

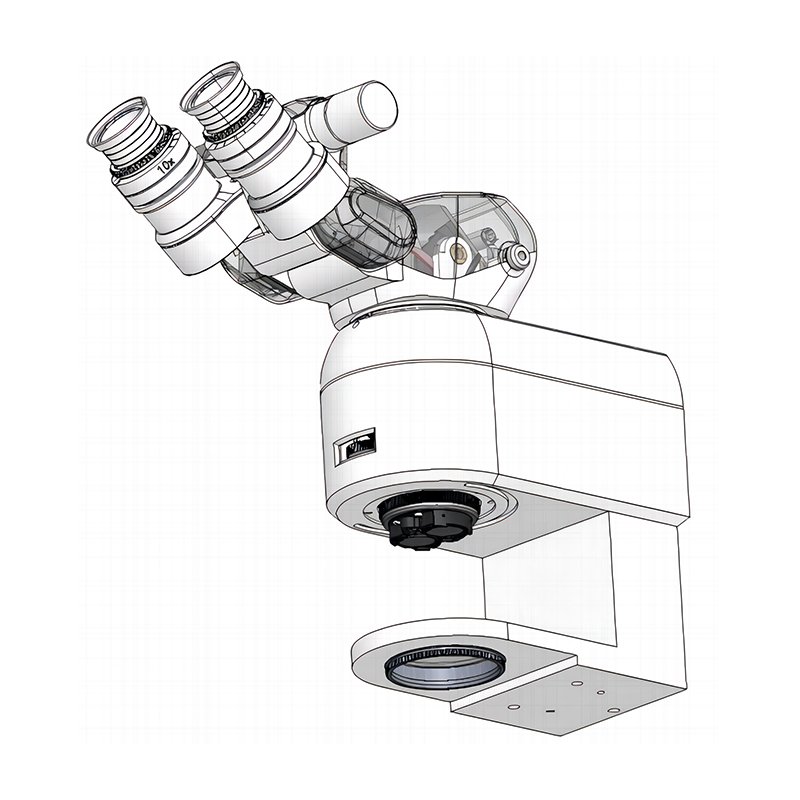

Understanding the baseline mechanics of an Ophthalmic Operating Microscope begins by deconstructing its optical formula. Total magnification does not rely on a single lens. It is the calculated product of multiple integrated optical components.
To determine the exact magnification output, optical engineers use a standardized formula. You multiply four distinct variables:
The focal length of the primary objective lens.
The focal length of the binocular tube.
The specific magnification factor engaged on the changer.
The inherent magnification power of the eyepieces.
The standard industry range operates between 4x and 40x total magnification. Most clinical scenarios find resolution within this bandwidth. A naked human eye can resolve details down to roughly 0.2 millimeters. By utilizing this magnification spectrum, you enhance tissue resolution down to an astonishing 0.01 millimeters. This capability allows surgeons to transition effortlessly from viewing gross anatomical landmarks to identifying microscopic cellular structures.
Microscopes employ two primary mechanisms to adjust this magnification. You must choose between step systems and continuous zoom architectures. Galilean step systems offer fixed, discrete magnification levels. They operate using mechanically simple rotating drums. This design makes them highly durable and relatively cost-effective. However, they interrupt the visual field momentarily during transitions.
Continuous zoom systems provide a much more fluid experience. They typically feature 1:6 zoom ratios. Surgeons heavily prefer these continuous platforms for complex microscopic procedures. The fluid transition allows the operator to maintain uninterrupted focus on critical tissue margins. You avoid the jarring visual jumps associated with stepped magnification changers.
Every optical system operates under strict laws of physics. The most challenging barrier involves depth of field (DoF). A strict inverse relationship exists between high magnification and DoF. When you zoom in closely, the vertical plane of focus narrows dramatically. High zoom naturally requires constant manual refocusing unless superior optical engineering offsets this physical limitation.
We consider parfocality an absolute prerequisite during the evaluation stage. Strict parfocal alignment allows a microscope to maintain sharp focus across all zoom levels. The surgeon can focus on a tissue membrane at 40x magnification. They can then zoom all the way out to 4x. The surgical field remains perfectly sharp. They never need to manually readjust the focal plane. If an optical head loses parfocality, it disrupts surgical rhythm and increases operative time.
Apochromatic (APO) lenses serve as another vital technical requirement. Standard optics often suffer from chromatic aberration at high magnifications. This aberration causes color fringing and subtle tissue distortion. APO lenses precisely align different wavelengths of light into a single focal point. They ensure high-fidelity color contrast. You perceive the true anatomical colors without artificial blurring.
Top-tier vendors now utilize optical workarounds to cheat these traditional physical limits. Standard microscopes force you to choose between resolution and depth of field. Modern premium systems introduce dual-path optical engineering. They route a high-resolution image to one eye. They simultaneously route a high-DoF image to the other eye. The human brain naturally fuses these two distinct images. This neural fusion grants the surgeon both exceptional clarity and a deep focal range simultaneously.
Chart: Comparing Standard vs. Advanced Optical Architectures | ||
Optical Feature | Standard Achromatic Systems | Premium Apochromatic (APO) Systems |
|---|---|---|
Color Fidelity | Prone to color fringing at high zoom. | True-color rendering via corrected wavelengths. |
Depth of Field | Shallow at high magnification. | Expanded through neural fusion technology. |
Refocusing Needs | Frequent foot-pedal adjustments required. | Minimal adjustments due to strict parfocality. |
Procuring the perfect surgical microscope requires mapping optical capabilities directly to clinical workflows. A generalized approach often fails. You must tailor the optical configuration to match the dominant surgical subspecialty in your operating room.
Cataract and anterior segment surgeries demand specific optical behaviors. The magnification profile typically remains low to moderate. Surgeons do not need extreme zoom for phacoemulsification. Instead, primary evaluation criteria focus on illumination geometry. You need superior coaxial illumination to generate a brilliant, stable red reflex. The red reflex must remain intensely visible even at low light levels. Furthermore, an expansive depth of field is critical. A deep focal range minimizes the need for distracting foot-pedal focus adjustments during rapid cataract extractions.
Vitreoretinal and posterior segment surgeries dictate an entirely different setup. The magnification profile pushes toward the absolute high end, frequently reaching the 40x limit. Surgeons operate deep within the ocular cavity. Exceptional stereoscopic visualization of the macula becomes the primary evaluation criterion. The microscope must offer seamless compatibility with non-contact wide-angle viewing systems. Additionally, modern posterior workflows increasingly rely on intraoperative OCT integration. Real-time OCT scanning requires flawless optical alignment to guide delicate membrane peeling.
Micro-Invasive Glaucoma Surgery (MIGS) represents a rapidly growing middle ground. The magnification profile ranges from moderate to high. MIGS procedures require surgeons to view the trabecular meshwork at extreme angles. Therefore, dynamic ergonomic adjustments define the primary evaluation criteria. Motorized tilt mechanics are strictly necessary. The microscope optical head must tilt sharply while maintaining brilliant visual clarity and physical balance.
Table: Subspecialty Optical Requirements | |||
Surgical Subspecialty | Magnification Profile | Critical Optical Priority | Key Hardware Integration |
|---|---|---|---|
Cataract / Anterior | Low to Moderate (4x - 15x) | Stable Red Reflex, Deep DoF | Coaxial Illumination Modules |
Vitreoretinal / Posterior | High (Up to 40x) | Stereoscopic Macular Clarity | Intraoperative OCT, Wide-Angle Lenses |
MIGS (Glaucoma) | Moderate to High (10x - 25x) | Clarity at Steep Viewing Angles | Motorized Tilt Mechanics |
Magnification and illumination exist in a delicate, highly dependent relationship. Adjusting one parameter instantly impacts the other. We call this phenomenon the illumination penalty. Zooming into a surgical target physically restricts the internal optical aperture. This restriction artificially darkens the surgical field. Historically, surgeons overcompensated for this dimming by manually cranking up the light intensity. This manual overcompensation drastically increases patient risk.
Phototoxicity risk management must sit at the center of any equipment evaluation. The human retina is exquisitely sensitive to high-intensity light. Prolonged exposure to unfiltered microscopic light causes devastating cellular damage. Xenon and halogen light sources are particularly hazardous. They can induce irreversible retinal or corneal burns within mere minutes. You must implement robust safety protocols to mitigate these thermal threats.
Automated light management serves as a strict shortlisting requirement for modern microscopes. Do not rely on manual dimming. Premium systems utilize intelligent software to track magnification changes. When a surgeon decreases magnification, the system automatically scales down the illumination intensity. It also adjusts brightness dynamically when the working distance shifts. This automation protects the patient while freeing the surgeon from constant manual adjustments.
You should also evaluate direct LED illumination architectures against legacy fiber optic systems. The market is shifting rapidly away from traditional bulbs.
Energy Efficiency: Newer direct-LED architectures require extremely low baseline wattage, often pulling less than 25W.
Thermal Safety: Legacy fiber-optic systems routinely demand 180W to achieve adequate brightness. This high wattage generates dangerous heat levels.
Light Quality: Direct LED modules mount closer to the optical carrier. They provide bright, color-neutral illumination without the severe thermal risks of halogen.
Lifespan: LEDs drastically reduce bulb replacement frequency, simplifying maintenance schedules.
High magnification provides zero clinical value if the physical design causes cervical strain. Ergonomics and workflow efficiency define long-term surgical success. You must rigorously evaluate the physical interface of the Ophthalmic Operating Microscope. Wireless foot pedals eliminate floor clutter and reduce tripping hazards. Programmable step-cycles allow surgeons to automate zoom and focus transitions based on the surgical phase. Binocular tilt parameters must accommodate varying surgeon heights to protect against chronic neck and back injuries.
Digital scalability represents the next major procurement hurdle. The traditional analog microscope is rapidly transitioning into a centralized digital hub. We call this the heads-up transition. You must assess whether the core optical head can support future modular integrations. Can the chassis accommodate 3D 4K monitors for heads-up surgery later? Buying a closed, analog-only system today guarantees premature obsolescence tomorrow. Ensure the architecture supports open data protocols and external camera integrations.
Asset maintenance protocols directly dictate the functional lifecycle of the equipment. High-end optics remain highly susceptible to environmental damage. Fungal growth easily destroys expensive objective lenses in humid environments. Internal alignment drift degrades parfocality over time. You must factor routine maintenance protocols into your deployment strategy. Establish strict environmental requirements, including climate control and voltage stabilizers. Planning clear, modular upgrade paths ensures the equipment remains clinically viable over a typical seven to ten-year lifecycle.
The ideal magnification range ultimately serves as a baseline parameter rather than the final deciding factor. The true clinical value of an ophthalmic operating microscope lies in its holistic optical performance. Procurement decisions should hinge on how elegantly the device manages the magnification-depth trade-off. You must prioritize intelligent illumination systems designed specifically to mitigate severe phototoxic risks.
Furthermore, ensure the platform seamlessly integrates with modern digital imaging workflows, including heads-up 3D displays and intraoperative OCT. Facilities should rigorously benchmark their shortlists based on their highest-volume surgical subspecialties. By matching the optical configuration precisely to your clinical reality, you guarantee enhanced surgical precision, maximum patient safety, and future-proof digital scalability.
A: Most clinical-grade systems operate effectively between 4x and 40x total magnification. This functional range depends entirely on the specific combination of objective lenses, the binocular tube, and the eyepieces used during the procedure.
A: Parfocality is the optical capability to keep the surgical field in sharp focus across all magnification levels. Once focused at the highest magnification, the surgeon can instantly zoom out without ever needing to manually refocus the lens.
A: High magnification naturally reduces the depth of field. This means only a very thin slice of tissue remains in focus. A larger, optimized depth of field minimizes the need for continuous manual refocusing via the foot pedal, keeping surgeries efficient.
A: Higher magnifications restrict light and require more illumination for clear visualization. Without automated light management and proper UV/yellow filters, this drastically increased light intensity can cause irreversible phototoxic damage to the retina or cornea in minutes.
A: Yes, many modern, modular microscopes are designed explicitly with digital scalability in mind. They can integrate directly with high-definition 3D cameras and monitors, allowing surgeons to operate while looking at a screen rather than through traditional eyepieces.
