In industrial metrology and automated optical inspection (AOI), securing repeatable measurements remains a daily engineering challenge. Standard imaging components often introduce parallax and perspective errors. These optical distortions heavily compromise measurement reliability across busy production lines. Engineers frequently struggle to maintain consistent quality assurance metrics when using standard optics.
Even sub-millimeter shifts in object placement create significant Z-axis variations. These subtle movements cause standard lenses to record false changes in magnification. You ultimately face frustrating false rejects, strict compliance failures, and highly unreliable dimensional data. A microscopic bounce on a conveyor belt suddenly turns a perfect part into a rejected anomaly.

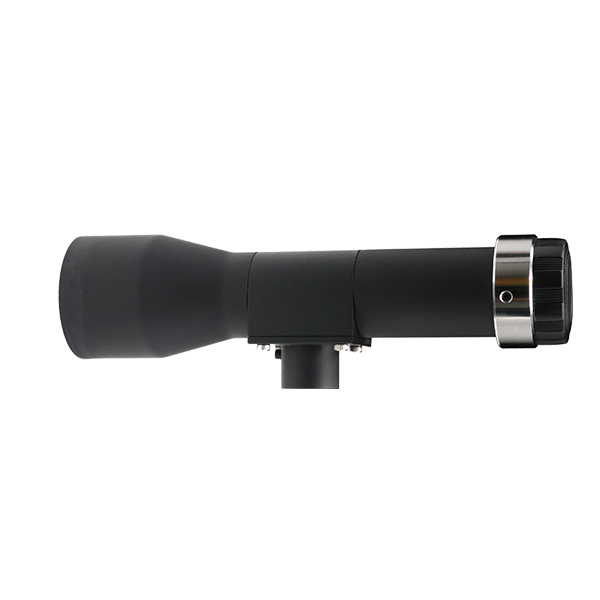

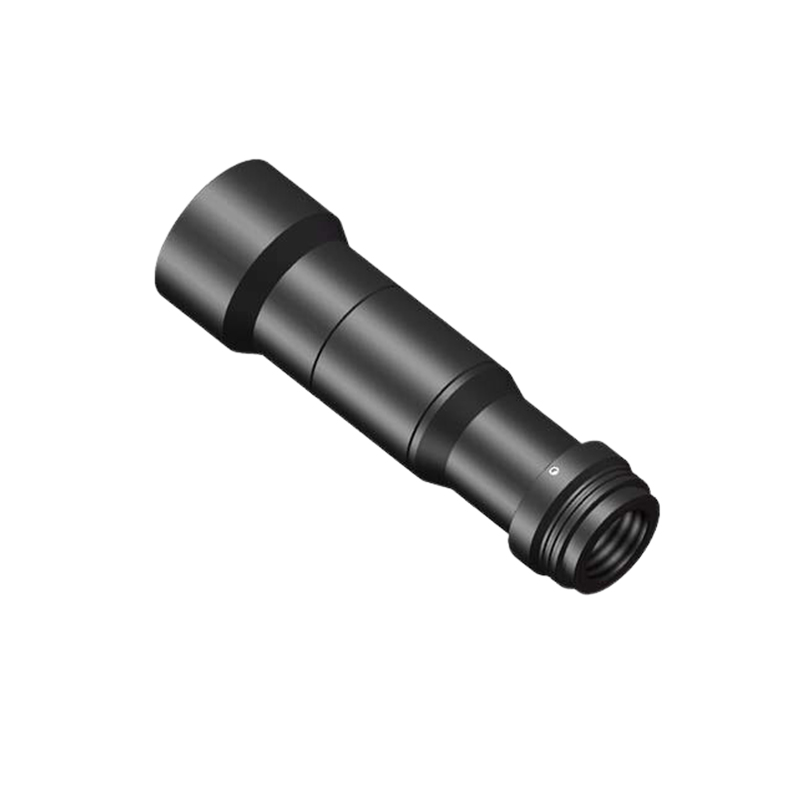

Telecentric Lenses resolve this specific challenge by capturing purely parallel light rays. They ensure optical magnification remains strictly constant regardless of the object's distance from the camera sensor. You will learn exactly why these specialized optical tools act as the uncompromising standard for modern precision measurement.
Telecentric optics maintain constant magnification across their defined depth of field, neutralizing parallax and perspective distortion.
Upgrading to a telecentric system typically reduces measurement uncertainty from standard lens baselines of 1–2% down to <0.1%.
Proper evaluation requires matching the lens’s field of view (FOV) strictly to the object size, as these lenses cannot view areas larger than their front optical element.
Implementation demands specific spatial planning, as bi-telecentric setups require significantly larger physical footprints and specialized collimated illumination compared to conventional optics.
Traditional endocentric lenses suffer from a fundamental baseline flaw during precision tasks. They inherently view objects at an angle, much like the human eye. The closer an object moves to the camera, the larger it appears. This shifting geometry creates significant magnification variances. A robotic arm might place a machined component just one millimeter closer to the sensor today than it did yesterday. The standard lens immediately registers this component as wider or taller, skewing the data entirely.
Vibrations and positioning errors dominate busy manufacturing environments. Z-axis vibrations on conveyor lines cause microscopic vertical shifts. Slight fixture misalignments translate directly into severe dimensional measurement errors. When you inspect medical devices or aerospace fasteners, you cannot tolerate these fluctuations. A simple mechanical bounce alters the perceived pixel count of the object edge. This artificial size inflation heavily impacts your overall production yield and introduces dangerous compliance risks.
The metrology mandate requires extreme accuracy. Six Sigma frameworks and ISO metrology standards demand highly repeatable gauge performance. Engineers often attempt to fix these mechanical variations using software. However, software calibration of standard lenses eventually hits a hard mathematical wall. Algorithms cannot guess missing edge data hidden by perspective angles. You need a dedicated optical hardware solution to maintain strict quality compliance.
Standard lenses force chief light rays to intersect at the central optical axis. Telecentric optics use a fundamentally different core design principle. They restrict incoming light exclusively to parallel rays. This unique geometry places the entrance pupil effectively at infinity. The parallel capture ensures a perfectly flat, uniform image. You measure the true orthographic projection of the object rather than a warped perspective view.
This parallel capture eliminates parallax completely. Removing parallax provides a distinct geometrical advantage for inspectors. You can inspect deep holes, spark plug threads, and complex cylinders accurately. Standard lenses naturally see down the internal sides of these cavities. They blend the top edge with the inner wall, destroying the measurement. Telecentric designs look straight down the barrel. They never register the inner walls of a deep bore.
Removing the angular field of view prevents common "edge blurring" issues. Standard lenses lose sharpness at the perimeter of the sensor due to geometric distortion. High-precision edge detection algorithms rely entirely on sharp white-to-black pixel transitions. Constant parallel rays ensure these algorithms operate reliably across the entire field. You get crisp, high-contrast edges from the center of the image all the way to the extreme corners.
Magnification stability stands out as the primary differentiator. Endocentric lenses provide variable magnification based entirely on the working distance. If a part shifts, its pixel footprint changes. Telecentric designs offer fixed optical magnification. If a part moves five millimeters away from the focal point, it occupies the exact same pixel footprint on the sensor. The math governing your measurement remains untouched.
Depth of Field (DoF) behaves uniquely under parallel light. Standard lenses blur objects outside the focal point. More importantly, they change the object's perceived size as the blur increases. Telecentric systems may eventually lose focus and blur at extreme distances. However, they will never change the registered dimensional size of the target. A blurred edge in a telecentric system remains perfectly centered on its true dimensional boundary.
Machine vision engineers sometimes rely too heavily on software algorithms. This reliance creates a dangerous misconception regarding distortion correction. Software cannot perfectly fix native perspective errors. Furthermore, algorithms absolutely cannot recover occluded edges. If a standard lens physically cannot see a hidden lip behind a cylinder, software cannot compute it back into existence. Hardware must capture the geometric truth first.
Feature Metric | Standard Industrial Lenses | |
|---|---|---|
Magnification Stability | Highly variable based on distance | Strictly fixed and constant |
Perspective Error (Parallax) | High (shows inner object walls) | Zero (true orthographic projection) |
Depth of Field Size Shift | Size changes as blur increases | Size remains identical during blur |
Software Correction Needs | Requires heavy grid calibration | Minimal to absolutely none required |
Physical Form Factor | Compact and lightweight | Bulky, requires large front optic |
You must establish strict evaluation metrics before upgrading your inspection stations. Choosing a proper Low Distortion Lens requires analyzing your precise application demands. Integrators must look beyond simple magnification ratios and examine deep optical performance data.
Object-Side vs. Bi-Telecentric Logic: You must determine the necessary level of parallel filtration. Front-lit metrology tasks usually succeed using object-side models. These filter rays entering the front glass. Ultra-high-precision setups demand bi-telecentric designs. These filter parallel rays on both the object side and the sensor side. Bi-telecentric systems eliminate microscopic sensor-alignment errors completely.
Telecentricity Angle Specifications: Evaluate the maximum telecentricity error strictly. Industry benchmarks dictate this error should typically remain under 0.1°. Anything higher reintroduces minor perspective shifts at the edges of the image. Always request the exact angle specification chart from the optical manufacturer.
Sensor Matching and Resolving Power: Modern machine vision relies heavily on high-megapixel sensors. You must match the optical resolution (MTF curve) to your sensor's pixel pitch. A 50-megapixel camera requires incredibly sharp resolving power. Ensure the image circle covers your entire sensor format perfectly. Mismatched circles cause severe vignetting and bottleneck your overall system accuracy.
Distortion Metrics: Monitor radial and trapezoidal distortion limits closely. Sub-micron inspection environments tolerate almost zero geometric bending. Keep total distortion ratings well below 0.1 percent. Premium optics often guarantee distortion levels near 0.05 percent, ensuring straight lines remain perfectly straight.
Upgrading optical hardware introduces practical mechanical engineering challenges. While parallel ray capture solves measurement errors, it creates new layout demands. You must plan for these realities early in the machine design phase.
Physical Constraints: You face a primary engineering trade-off regarding size. The front optic must physically exceed the target object being measured. A 150-millimeter part requires a lens diameter larger than 150 millimeters. Massive lenses demand incredibly robust mounting rigidity. They add significant weight to robotic arms, gantries, or fixed inspection tunnels.
Working Distance Limitations: Fixed working distances create highly rigid mechanical layouts. You cannot use zoom functions to adjust the framing on the fly. You must position the camera exactly at the specified nominal working distance. Exact mechanical integration becomes critical. Any layout mistakes require machining new mounting brackets.
The Role of Illumination: A premium optic often underperforms without proper lighting integration. Paired telecentric (collimated) backlighting proves essential for profile measurements. Standard diffuse light scatters photons unpredictably around object edges. This random scattering can easily re-introduce edge reflection anomalies. Collimated backlights push light rays perfectly parallel into the lens. This specific pairing guarantees incredibly sharp, high-contrast silhouettes.
Transitioning to perspective-free optics remains a highly valuable engineering decision. You ensure measurement reliability across every shift. This upgrade proves vital when sub-pixel accuracy stands as a non-negotiable success criterion for your facility. You eliminate expensive software workarounds entirely. More importantly, you stabilize your compliance data against daily mechanical vibrations and positioning errors.
Integrators must plan their next steps methodically. First, evaluate your maximum possible part size carefully. This calculation determines your mandatory Field of View (FOV). Next, assess the physical space available inside your vision station. Ensure your gantry can support heavy equipment. Finally, match your chosen sensor resolution to the optic's resolving power before you begin shortlisting specific models.
A: These specialized optics capture strictly parallel light rays to eliminate perspective distortion completely. To achieve this geometry, the front optical element must be at least as large as the target object itself. This strict 1:1 ratio requirement between the front optic and the field of view naturally results in bulky, heavy hardware configurations for larger manufactured parts.
A: Yes, you can inspect objects smaller than the maximum field of view perfectly. The measurement remains highly accurate. However, objects larger than the front lens diameter cannot be inspected in a single pass. You would need to physically index the camera or use multiple synchronized cameras to stitch the total area together.
A: They completely eliminate perspective distortion, also known as parallax errors. However, they do not automatically eliminate all optical manufacturing flaws. Minor residual radial distortion often remains. Fortunately, manufacturers minimize this radial distortion to exceptionally low microscopic levels, usually keeping it well below 0.1 percent across the entire sensor.
A: It is highly recommended but not always strictly mandatory. Collimated lighting becomes absolute necessity for highly precise profile measurements and silhouette shadow graphing. Standard diffuse lighting often suffices for basic front-lit surface inspections, provided the absolute extreme edge sharpness does not dictate your primary measurement tolerance.
