Product Parameters
| 产品型号 | 焦距 | 工作距离 | 照明角度 | 功率损失 | 适配激光器波长 | 适配激光器接头 |
| Model | Focal Length（mm） | working distance（km） | angle of illumination（°） | loss of power（%） | Wavelength（nm） | mount |
| RZ 075100-VIS | 0.75-100 | ≥1 | 0.22°-35.4° | ＜5 | VIS | SMA905 |
| RZ 075100-IR | 0.75-100 | ≥1 | 0.22°-35.4° | ＜3 | 808±10&940±10 | SMA905 |
| RZ 075075-IR | 0.75-75 | ≥1 | 0.3°-35.4° | ＜3 | 808±10&940±10 | SMA905 |
| RZ 300090-G | 3-90 | ≥1 | 0.065°-2.1° | ＜3 | 525±10 | FC |
| RZ 010015-IG | 0.1-15.5 | ≥1 | 0.5°-70° | ＜2 | 808±10 | SMA905 |
Product Introduction

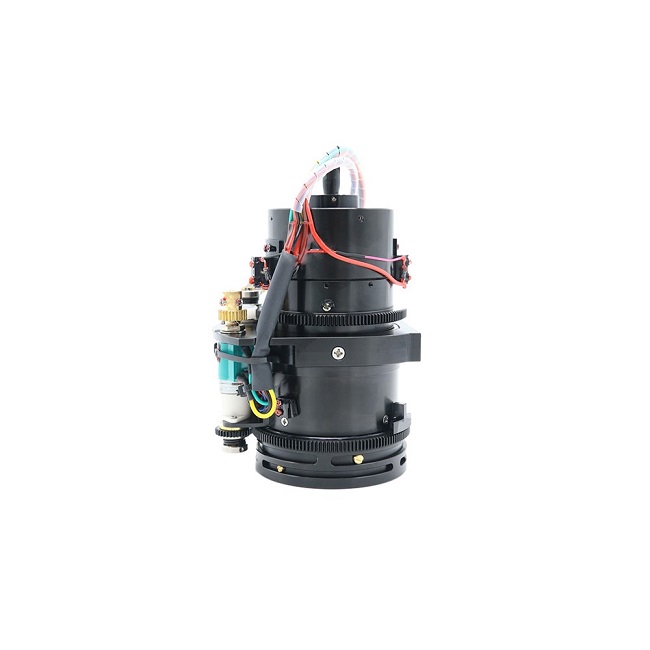

The Motorized Zoom Laser Lens RISING-EO is a premium-grade adjustable illumination system, engineered for precision applications where control over light is critical. This advanced motorized zoom laser lens enables real-time, continuous adjustment of laser spot size (0.75-100mm) through its internal electrically-driven lens group. Designed to deliver high-intensity, high-contrast lighting for machine vision, night surveillance, and specialized optical tasks, it is the definitive solution for systems requiring flexible, powerful, and reliable laser illumination.
Core Advantage
At the heart of the RISING-EO system is its innovative motorized zoom laser lens mechanism. Unlike fixed-focus illuminators, this motorized zoom laser lens provides unparalleled operational flexibility. Operators can seamlessly adjust the laser spot diameter and divergence angle from a compact 0.75mm to a broad 100mm profile. This adjustable spot laser capability ensures optimal illumination coverage for targets at varying distances, making every motorized zoom laser lens unit adaptable to dynamic application requirements.
We offer three specialized variants of our motorized zoom laser lens, each optimized for specific spectral and performance demands:
1. Dual-Band IR Motorized Zoom Laser Lens
Product Core：This motorized zoom laser lens is calibrated for 808nm & 940nm infrared wavelengths.
Zoom Range：0.75mm – 100mm continuous motorized zoom.
Application Product：As an infrared motorized zoom laser lens, it is perfect for covert surveillance, perimeter security lighting, and enhancing night vision camera systems.
2. Visible Spectrum Motorized Zoom Laser Lens
Product Core：Our visible light motorized zoom laser lens covers the full 400nm – 800nm range.
Zoom Range：Identical 0.75mm – 100mm motorized zoom capability.
Application Product：This adjustable spot laser module is essential for high-speed machine vision inspection, precision alignment, and industrial quality control under controlled lighting.
3. Green Precision Motorized Zoom Laser Lens
Product Core：A dedicated 525nm motorized zoom laser lens for applications demanding high visibility and precision.
Zoom Range：Features an ultra-narrow 0.065° – 2.1° adjustable beam.
Application Product：This specialized motorized zoom laser lens serves demanding roles in defense, law enforcement (dazzling/warning), and long-range targeting systems.
Why did you choose us?
1.The motorized zoom laser lens system allows for remote, repeatable, and precise spot size adjustments.
2.Each motorized zoom laser lens supports high-power sources up to 50W.
3.Engineered to operate reliably from -40°C to 70°C.
4.Our motorized zoom laser lens architecture ensures minimal light loss (<3-5%) for maximum efficiency.
5.Standard SMA905/FC fiber interfaces make every motorized zoom laser lens easy to integrate into existing systems.
Application Scenarios
Industrial machine vision： The motorized zoom laser lens is ideal for providing adjustable, shadow-free illumination for automated inspection and robotic guidance.
Security monitoring system： As a long-range motorized zoom laser lens, it turns standard IR cameras into powerful night vision systems for borders, critical infrastructure, and large-area surveillance.
Military & Law Enforcement EOD Applications：It enables precise, long-range disruption of specific ocular areas. Militarily, it is used for electro-optical countermeasures, such as interfering with enemy sniper scopes and missile seekers, or for effective warning and dispersal of distant targets during sentry duty. In law enforcement, it provides tactical units with a means of precise suspect control.
