High-precision automated inspection demands absolute accuracy. Standard entocentric optics inherently suffer from perspective distortion. Engineers commonly refer to this flaw as parallax error. This optical limitation causes closer objects to appear larger than objects further away. As a result, critical dimensional measurements become highly unreliable across the inspection plane.
To solve this fundamental flaw, engineers rely on optical systems designed to maintain constant magnification regardless of the object's distance from the lens. These specialized optics eliminate measurement errors in strict automated environments. They allow software to analyze dimensions accurately without compensating for depth-induced scaling variations.
We will explore exactly how these optics perform in industrial settings. You will gain a concrete evaluation framework to determine when a Machine Vision Lens of this caliber is strictly required. Finally, we provide guidance on justifying the investment and selecting the key specifications needed for successful deployment.
Zero Parallax: Telecentric lenses eliminate perspective errors, ensuring objects appear the exact same size regardless of their depth within the field of view (FOV).
Primary Use Cases: Essential for sub-micron metrology, checking dimensional tolerances, and inspecting complex 3D profiles (like threads or deep cylinders).
Physical Constraints: Unlike standard optics, a telecentric lens must be physically larger than the object it is inspecting, requiring careful space planning in automated cells.
Optimal Pairing: To achieve maximum edge contrast, telecentric lenses should almost always be paired with collimated telecentric backlighting.
You cannot manage what you cannot measure accurately. Standard lenses view objects from an expanding angle. This creates inherent parallax. If you place two identical components at slightly different distances from a standard lens, the closer component looks measurably larger. In strict quality control environments, this perspective error proves disastrous. Vision systems analyze pixel counts to determine pass or fail criteria. If a part appears larger simply because it shifted closer to the sensor, the software registers a false failure.
You then reject perfectly good parts. These false rejects severely impact production yields. They force manual reinspection and slow down throughput. Standard optics also struggle immensely when examining deep cavities. A standard angular field of view inevitably captures the inner walls of a cylindrical part. This obscures the actual bottom feature you need to inspect. Engineers call this phenomenon edge roll-off or shadowing. You lose the true profile of the edge.
Evaluating the return on investment requires looking beyond the initial hardware purchase. These specialized optical components do cost significantly more upfront. However, you must weigh this against the immediate reduction in false rejects. You also eliminate massive amounts of software-heavy calibration workarounds. Teams often spend weeks trying to program perspective corrections. A dedicated optical solution solves the problem at the hardware level. This guarantees tight-tolerance manufacturing compliance day after day.
Certain industrial environments leave zero room for optical ambiguity. Telecentric Lenses transition from an optional upgrade to a mandatory requirement in the following scenarios.
Precision Metrology & Gauging: Automated measurement of machined parts, gears, and fasteners relies on absolute edge detection. When micrometers matter, you cannot afford pixel blur caused by viewing angles. The optics must capture parallel light rays to define the exact outer boundary of a metal thread or gear tooth.
Semiconductor & Electronics Inspection: Modern microelectronics pack components tightly. You must verify IC pin alignment, PCB component placement, and delicate wire bonding. Perspective skewing hides true pin positions. An angled view might make a perfectly straight pin look bent. True parallel optics prevent this critical error.
Thick or Multi-Level Object Inspection: Consider a spark plug or a stepped shaft. You often need to measure features at the very top and the very bottom simultaneously. Standard optics magnify the top feature more than the bottom. Specialized parallel optics scan objects having varying heights while rendering all planes at identical magnification.
Clear Parts and Vials: Inspecting glass syringes, medical vials, and transparent polymers presents unique challenges. Optical distortion from standard lenses causes severe refractive errors. Light bends unpredictably through curved glass when striking it at an angle. Viewing the glass perfectly perpendicular eliminates these confusing reflections and distortions.
Not all designs are created equal. Manufacturers divide these optics into three distinct architectural categories based on where they correct the light paths. Understanding these distinctions helps you match the hardware to your specific inspection envelope.
Architecture Type | Primary Function | Best Suited For |
|---|---|---|
Object-Space | Eliminates parallax strictly on the object side of the lens. | Standard dimensional inspection, 2D profile gauging, and general industrial metrology. |
Image-Space | Ensures light hits the camera sensor perfectly perpendicular, preventing pixel cross-talk. | High-resolution sensors and color-critical inspections requiring exact radiometric uniformity. |
Bi-Telecentric | Combines both object and image space corrections into one continuous system. | The ultimate standard in machine vision. Provides maximum depth of field and lowest possible distortion. |
This design accepts only parallel light rays from the object being inspected. It effectively eliminates perspective errors on the factory floor. If the part moves slightly closer to the glass, its perceived size remains entirely static. Most standard gauging applications rely successfully on object-space designs.
This design corrects the light path on the camera side. Instead of hitting the sensor at an angle, light strikes every individual pixel straight down. This prevents optical cross-talk where photons bleed into adjacent pixels. You use this heavily for color-critical sorting and radiometric analysis.
This represents the pinnacle of optical engineering. It combines both object and image space corrections. Bi-telecentric designs offer the absolute lowest residual distortion available today. They also maximize the usable depth of field and guarantee completely uniform illumination across the entire sensor bed.
Selecting the correct optical hardware requires strict mathematical alignment. You cannot guess parameters. You must calculate them based on your physical inspection environment.
You must understand the absolute 1:1 rule. To capture parallel light rays, the front optical element must exceed the size of the Field of View. If you need to inspect a 150mm wide engine block, your front glass element must be larger than 150mm. This dictates massive physical footprints. You must guide your system integrators to plan for significant space inside the automated robotic cell.
Unlike standard variable zoom systems, these optics feature entirely fixed magnification. You cannot twist a barrel to zoom in. You must calculate the exact sensor-to-object ratio before initiating a purchase order. If your sensor is 10mm wide and your object is 50mm wide, you require exactly a 0.2X magnification rating. Any mistake here requires buying completely new hardware.
Working distance defines the physical gap between the front glass and the part under inspection. You must select a distance that accommodates robotic arms, conveyor belts, and necessary illumination panels. Simultaneously, evaluate the Depth of Field. The DoF dictates how much vertical variance the part can have while remaining in perfectly sharp focus. A deeper DoF provides more tolerance for parts bouncing slightly on a moving belt.
Mismatched sensors destroy optical performance. You must match the image circle of the lens to your high-megapixel sensor format. Using a 1-inch format sensor behind optics designed for a 1/2-inch sensor results in severe vignetting. The corners of your image will turn completely black. Furthermore, standardize your mounting hardware. Smaller formats easily utilize standard C-mount threads. However, massive modern sensors require heavy F-mount or M42 standard threads to handle the mechanical payload safely.
Deploying specialized measurement optics involves distinct mechanical and environmental challenges. Many teams fail during implementation because they treat these instruments like standard surveillance cameras.

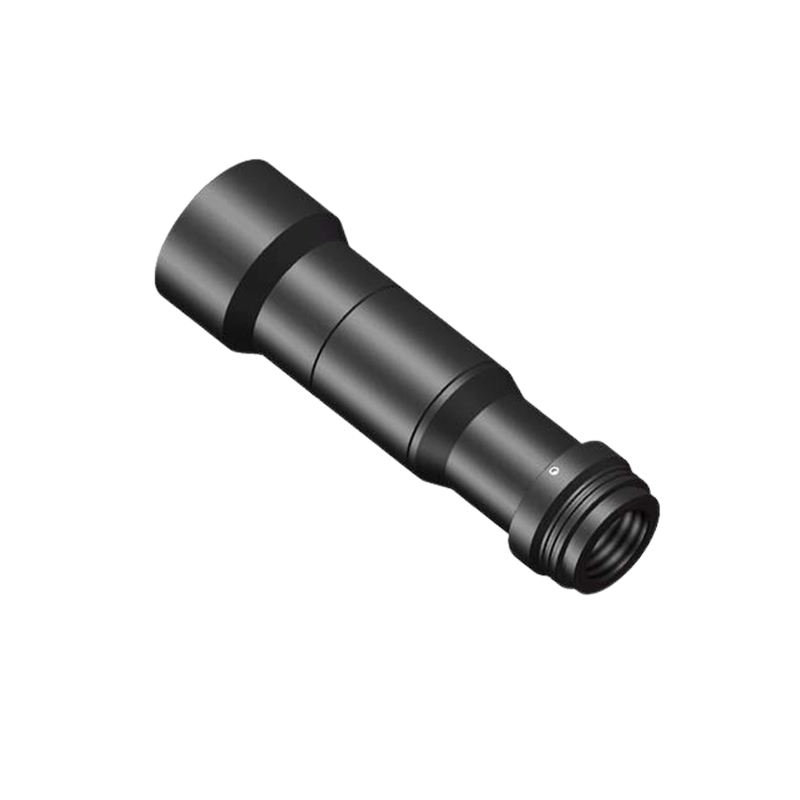

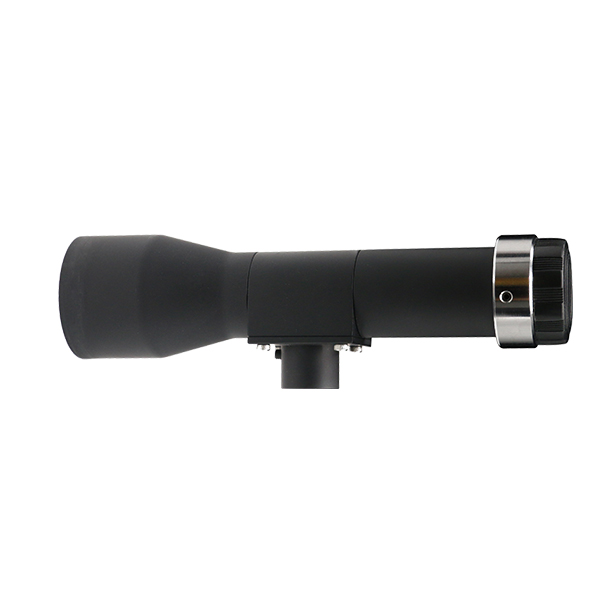

You must prepare for serious physical weight. Because the front elements are massive, a typical Telecentric Lenses setup can weigh several kilograms. A standard camera mounting plate will flex under this burden. Mechanical vibration from stamping presses or conveyor motors will shake the assembly. This micro-vibration destroys sub-micron measurement accuracy. You must utilize robust, heavy-duty mounting brackets that support both the camera body and the heavy optical barrel simultaneously.
An optical measurement system is only as accurate as its lighting. Standard diffuse room light actively degrades parallel optical performance. Diffuse light scatters at random angles. You need extreme edge contrast for precise measurement. Collimated backlighting remains the absolute industry standard here. Collimated lights emit strictly parallel light rays. When you pair parallel lighting with parallel receiving optics, the object creates a razor-sharp silhouette. This enables software algorithms to locate edges with absolute certainty.
Never rely on ambient factory lighting for metrology.
Match the diameter of your collimated backlight to the diameter of your front optical element.
Use monochromatic lighting (like red or blue LEDs) to further reduce chromatic aberrations in the glass.
Industry myths suggest these systems require zero calibration. This is dangerously false. While they eliminate perspective errors, they still contain minor residual distortion inherent in manufacturing ground glass. This residual distortion usually sits below 0.1%. While exceptionally low, sub-pixel metrology still demands perfection. You must perform a baseline software calibration using a highly accurate grid target. This software step maps out that final 0.1% variance, pushing your accuracy to the absolute physical limit.
These optical systems are not general-purpose imaging devices. They serve as purpose-built measurement instruments designed for uncompromised accuracy. They eliminate perspective errors and guarantee repeatable dimensions across varying depths.
To succeed, you must embrace their strict physical constraints. Acknowledge the space requirements dictated by the 1:1 front element rule. Prepare for heavy mechanical mounting and invest heavily in matched parallel illumination.
Your next step should begin outside of hardware catalogs. Start by finalizing your maximum Field of View calculation based on your largest manufactured part. Next, conduct a lighting feasibility study to ensure you can fit a collimated backlight into the machine frame. Only after defining these physical boundaries should you request an evaluation unit from your optics supplier.
A: Because the front optical element must be at least as large as the maximum Field of View (FOV) being inspected to capture parallel light rays.
A: Yes, the magnification remains constant even if the working distance changes, provided the object stays within the specified Depth of Field.
A: Macro lenses offer high magnification but still suffer from perspective distortion (parallax). Telecentric lenses offer fixed magnification with zero perspective error.
