Specifying complex optics often forces engineers into a difficult dilemma. You must constantly balance extreme optical precision against upfront tooling budgets and production scalability. Choosing the wrong manufacturing path can derail a product launch before production even begins. Both primary manufacturing methods effectively eliminate spherical aberration in complex imaging systems. However, the choice between molding and polishing dictates overall project viability from early prototyping through high-volume mass production. This vital decision impacts everything from raw material selection to final delivery lead times. The purpose of this guide is to provide optical engineers and procurement teams with a clear, Design-for-Manufacturing (DFM) evaluation framework. We will explore the technical limitations, material constraints, and production economics of both methods. By the end, you will know exactly how to choose the right production approach for your specific optical system requirements.

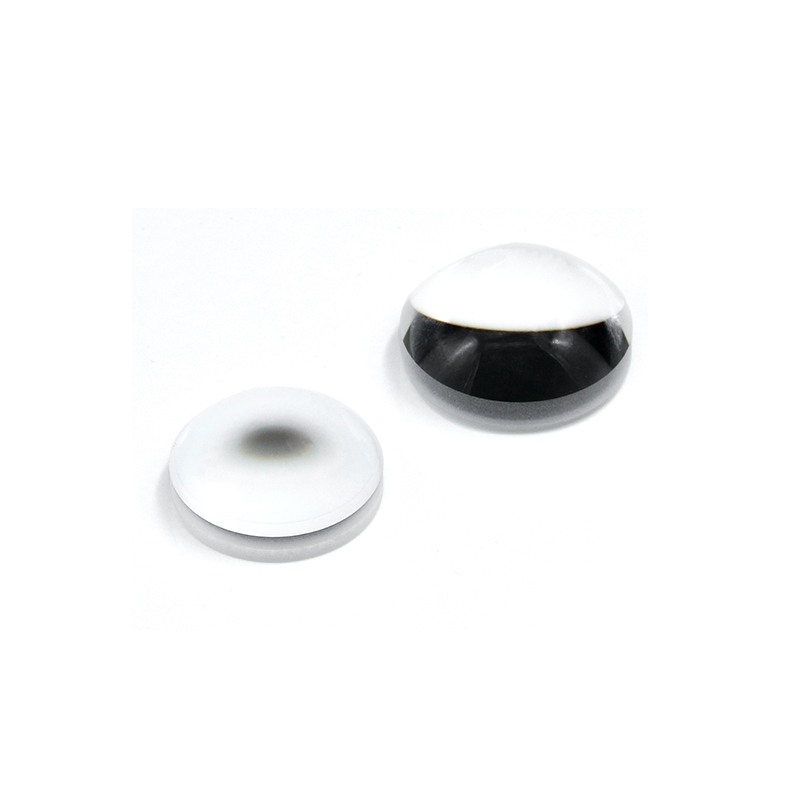

Optical manufacturers rely on two distinct methods to produce Aspherical Lenses. Understanding how these processes work on a mechanical level helps you anticipate their respective advantages and limitations.
Precision Glass Molding is a highly controlled thermal forming process. Manufacturers begin by placing a polished glass preform (often a simple sphere or disc) between two ultra-precise mold halves. They place this assembly inside a nitrogen-purged heating chamber. The system heats the glass preform above its transition temperature (Tg), softening the material. A hydraulic press then forces the mold halves together, pressing the softened glass into the exact aspheric profile.
The primary advantage of PGM is the creation of near-net-shape optics in a single primary step. Once the mold exists, a factory can stamp out thousands of identical lenses quickly. This eliminates the need for time-consuming grinding and polishing cycles on individual parts. However, this thermal process introduces unique challenges regarding glass chemistry and cooling rates.
In contrast to molding, CNC polishing is a subtractive, deterministic process. It relies on advanced grinding and polishing machines to remove material systematically. Technicians start with a solid glass blank. They use diamond-bonded cutting tools to generate the rough aspheric curve. Next, they employ sub-aperture polishing tools or Magnetorheological Finishing (MRF) to achieve the final optical surface.
MRF uses a magnetically controlled fluid to polish the lens exactly where errors exist. Technicians map the lens surface using an interferometer. The CNC machine then targets specific high spots for removal. This approach shapes the final aspheric profile purely through mechanical abrasion. Crucially, subtractive polishing involves no thermal phase changes. The glass retains its original catalog properties throughout the entire manufacturing cycle.
Engineers must carefully evaluate surface tolerances when choosing a production method. The optical performance ceilings differ significantly between these two manufacturing approaches.
Surface figure accuracy defines how closely the manufactured lens matches your theoretical design. Polishing routinely achieves exceptional fractional-wave accuracy. Subtractive methods easily hit tolerances below λ/10. This extreme precision makes polished optics mandatory for high-end imaging systems, semiconductor inspection tools, and high-power laser beam delivery.
Molded lenses face stricter limitations. Their surface figure typically hovers around λ/2 to λ/4. While this accuracy fully satisfies requirements for illumination systems, automotive LIDAR, and consumer camera sensors, it often fails strict interferometric testing. If your design demands near-perfect wavefront error control, thermal molding will likely struggle to meet your specifications.
Manufacturing methods also leave distinct physical signatures on the glass.
Your choice of optical material heavily dictates your manufacturing options. Not all glass types survive the rigors of thermal pressing.
Molded lenses remain strictly limited to "moldable" glasses. These are specific materials engineered with low glass transition temperatures. Typical PGM glasses feature a Tg between 400°C and 600°C. Heating standard optical glasses beyond these points often causes devitrification or severe chemical degradation. You must design your system around these specialized glass catalogs from the start.
Furthermore, molding carries a known risk called "index drop." The heating and rapid cooling cycle alters the internal structure of the glass. This slightly changes the final refractive index compared to the raw catalog data. Optical designers must apply specific compensation formulas during the design phase to account for this inevitable shift.
Polishing offers nearly unlimited substrate versatility. Because CNC machines cut material away mechanically, they do not care about transition temperatures. You can specify a custom lens fabricated from high-Tg materials, UV fused silica, robust crystals like Sapphire or Zinc Selenide, and highly specialized high-index glasses. If a material can be ground and polished, a CNC machine can turn it into an asphere.
Understanding production economics is critical for procurement teams. The financial models for these two processes look entirely different from day one.
Precision Glass Molding requires substantial initial capital expenditure (CapEx). Manufacturers must machine, polish, and coat custom tungsten carbide molds to withstand extreme pressing temperatures. A single mold set can cost tens of thousands of dollars. You must pay this upfront cost before a single production lens is ever created.
Conversely, CNC polishing involves zero-to-low custom tooling costs. The process relies heavily on software programming and standard sub-aperture tools. The manufacturer simply writes a new machine code path for your specific geometry. This drastically lowers the financial barrier to entry for early-stage development.
The standard breakeven analysis concept clearly illustrates where each method excels. We can observe distinct economic dominance zones based entirely on production volume.
| Production Volume | Economically Dominant Method | Reasoning |
|---|---|---|
| 1 to 500 units | CNC Polishing | Avoids the heavy CapEx of custom molds. Unit cost is higher, but total project spend remains much lower. |
| 500 to 1,000 units | Transition Zone | Depends heavily on glass type and specific tolerance requirements. A detailed DFM audit is necessary here. |
| 1,000 to 5,000+ units | Precision Glass Molding | Mold costs amortize across thousands of parts. The per-unit price drops drastically due to rapid pressing cycle times. |
Schedule constraints also drive manufacturing choices. Polishing delivers faster first-article results, often within weeks. Engineers can receive custom prototypes quickly, test them, and iterate designs without penalty. Molding involves a significantly slower initial setup. Designing the mold, fabricating the tooling, and running thermal iterations can take several months. Once the factory approves the final mold, however, high-volume delivery becomes exceptionally fast.
Applying a structured evaluation framework helps you lock in the right strategy. Use the following criteria to audit your current optical system requirements.
Many experienced engineering teams employ a hybrid implementation pipeline to mitigate risk. They start prototyping by ordering polished lenses. However, they force the optical designer to use the exact equivalent moldable glass type (e.g., specifying D-ZK3 instead of N-BK7). They validate the system performance using these polished prototypes. Once management approves mass production, the team transitions directly to Precision Glass Molding. The glass chemistry remains identical, preventing unexpected optical shifts, while the factory rapidly scales production to meet market demand.
Choosing between molding and polishing is not a matter of determining which method is objectively "better." Instead, it is about aligning the manufacturing process with your specific tolerance budget and volume trajectory. Polishing delivers ultimate precision and material flexibility, making it ideal for low-volume, high-performance systems. Molding sacrifices absolute precision and material choice for unmatched scalability and unit cost reduction.
Your next step should always involve collaborative engineering. Encourage your buying team to engage with an optical manufacturer early in the design phase. Request a comprehensive Design for Manufacturing (DFM) review. A skilled manufacturing partner will audit your material choices, evaluate your tolerance stack, and establish highly realistic cost-at-volume projections before you finalize your blueprints.
A: Yes, but you must specify a moldable glass type (e.g., D-ZK3 instead of N-BK7) for the polished prototype. This ensures the optical performance, particularly the refractive index and dispersion characteristics, remains identical when you eventually transition to mass production molding.
A: The vacuum deposition coating processes are generally similar for both. However, molded lenses may require specialized low-temperature coating chambers. Moldable glasses often have highly sensitive thermal expansion coefficients, and exposing them to high heat during standard coating runs can cause physical stress or surface damage.
A: Glass molding provides significantly higher environmental stability, superior scratch resistance, and much tighter refractive index consistency across temperature shifts. While injection-molded optical polymers are much cheaper and ideal for extreme high-volume disposable optics, they degrade rapidly under harsh UV exposure or high thermal loads.
